1″ Double Diaphragm Air Pump 90 l/min – Viton Seals

1″ Double Diaphragm Air Operated Pump

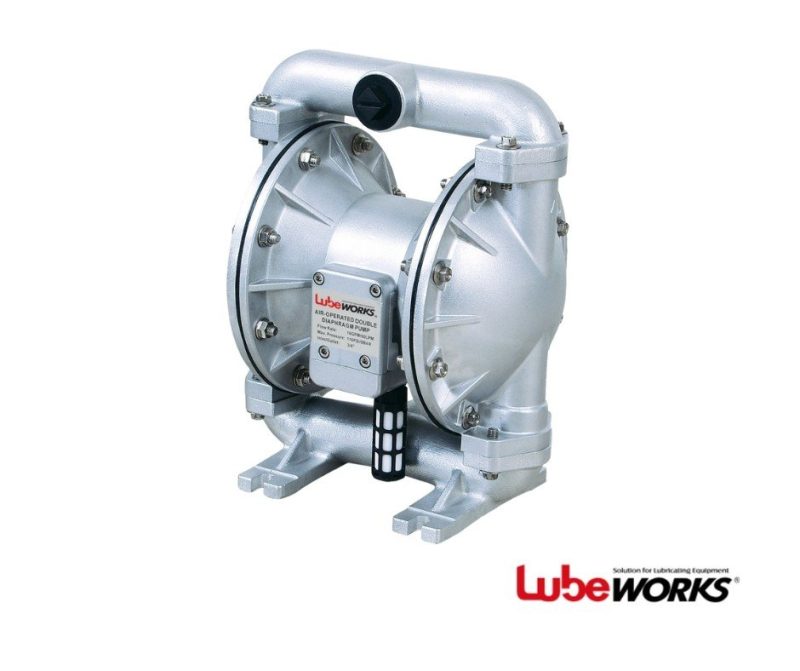

Pneumatic 1″ double diaphragm pump. Designed for use with oil, water, diesel, AdBlue, Anti-Freeze & other water based liquids. The double diaphragm design provides high flow and consistent pumping.

Technical Information

• Suitable for oil, water, diesel, AdBlue, Anti-Freeze & other water based liquids
• Max operating pressure 116psi / 8 Bar
• 3/4” BSP inlet & outlet
• Viton Seals
• 90 l/min max flow rate
• Air inlet 1/4″
• 1:1 ratio

High Flow Air Pump

These double diaphragm pumps have 1″ inlet and outlet ports which provide a maximum flow rate of up to 90 litres per minute. This high flow rate combined with the heavy duty build quality, ensures these pumps operate at peak performance.

Suitable Liquids

• Lubricating, engine & transmission oil
• Waste Oil
• AdBlue
• Anti Freeze
• Water
• Non corrosive chemicals
• Water based liquids

These pumps are also available in 3/4″.
